Pavilion section and operable facade system illustrating the light-filtering timber envelope for hat exhibition

The Hatter Pavilion

Uchumarca, Peru · 2023

TIPO
Engineering · Social Pavilion
FECHA
2023
CIUDAD
Uchumarca
PAÍS
Peru
ESTADO
Concept

The Hatter Pavilion is a timber social pavilion designed for hat exhibition in Uchumarca, Bolívar, La Libertad, Peru. Inspired by the enigmatic atmosphere of Sherlock Holmes and Victorian aesthetics, the project develops a light narrative that shifts from clarity to mystery through layered wooden filters and operable facade elements. The pavilion is organized as three sequential volumes: a public reception space, a semi-private central gallery for hat display, and a private end zone containing the wet core and storage. Detailed

Design: SARQAV Team · Render:

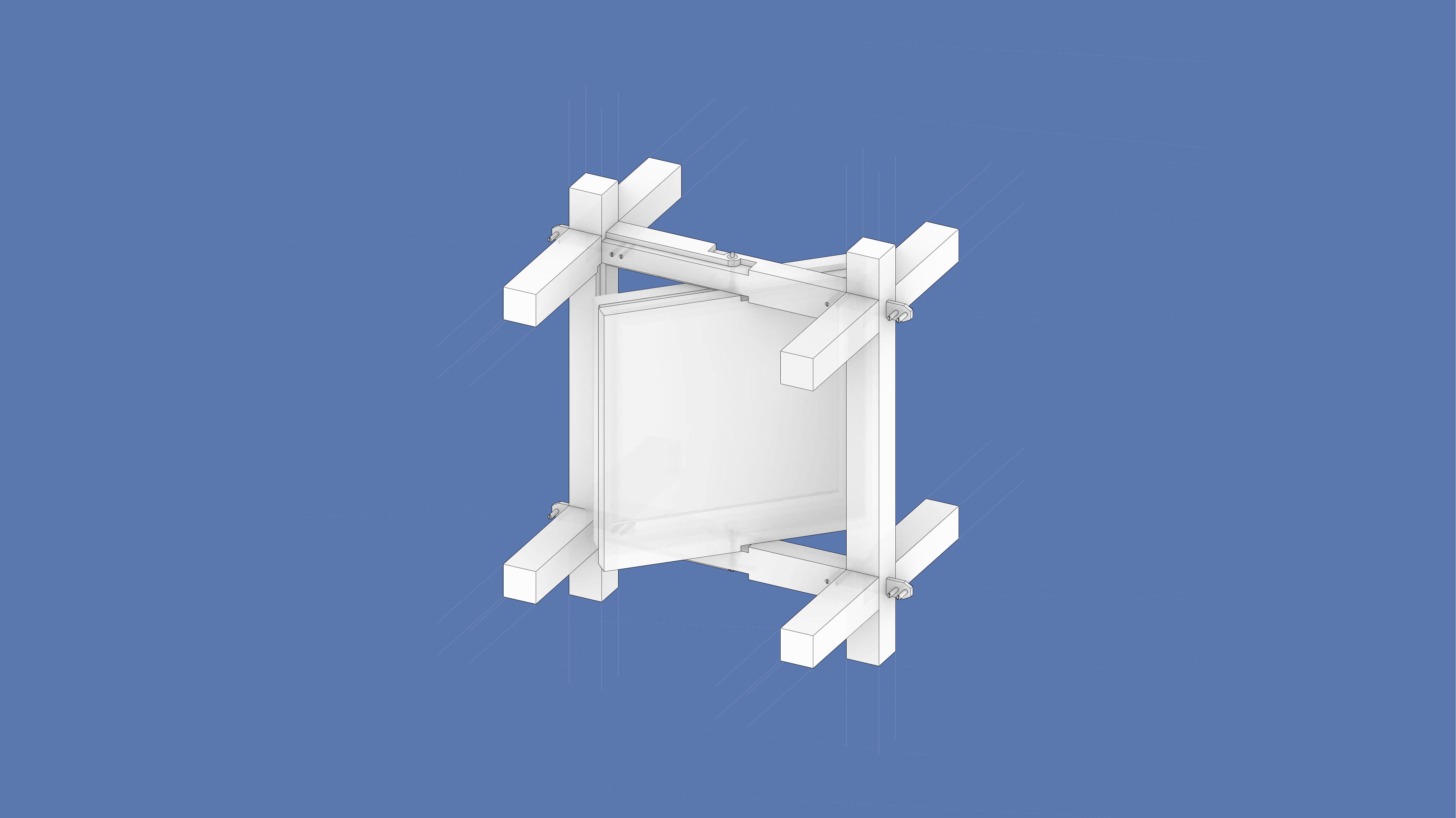

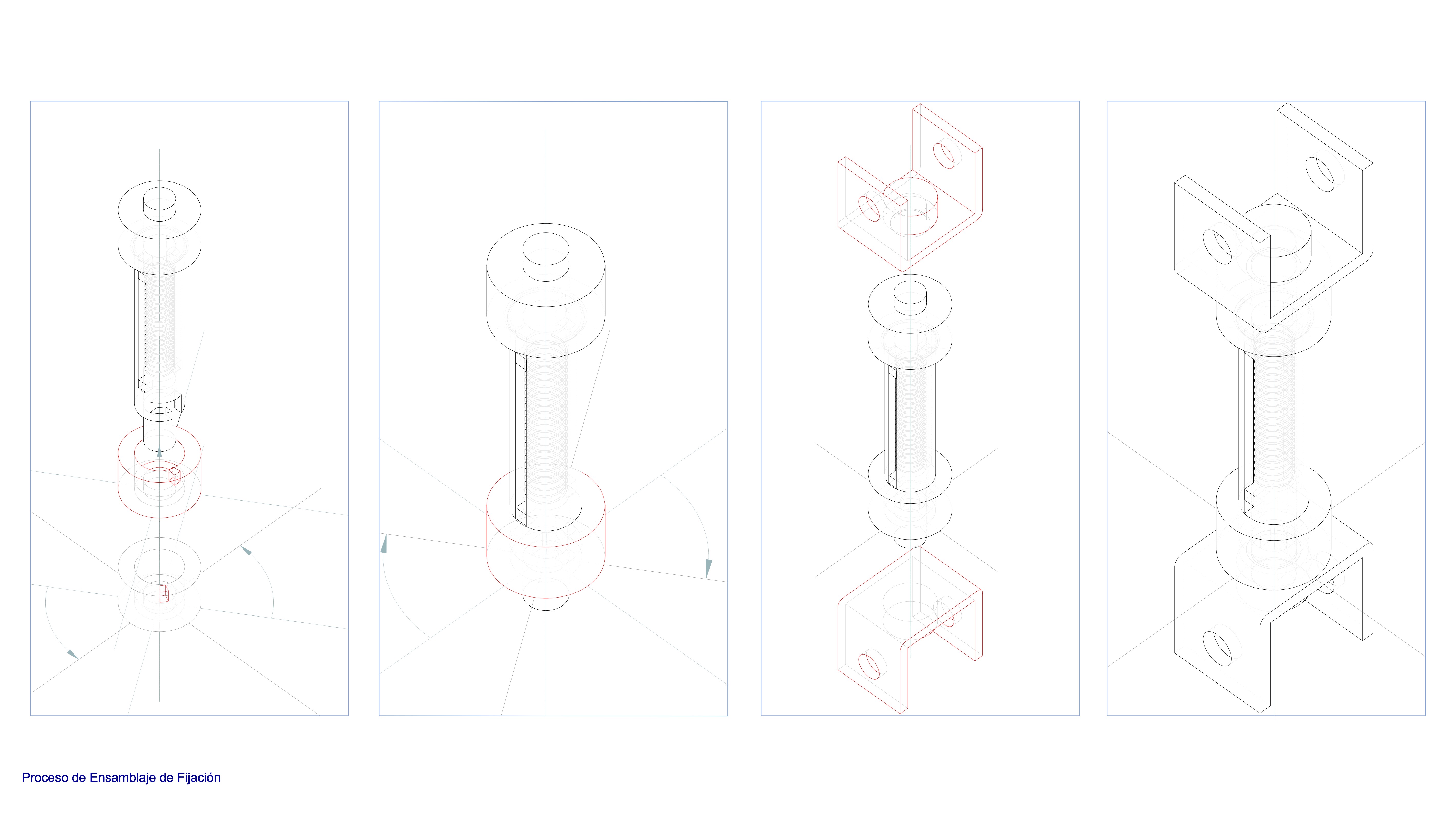

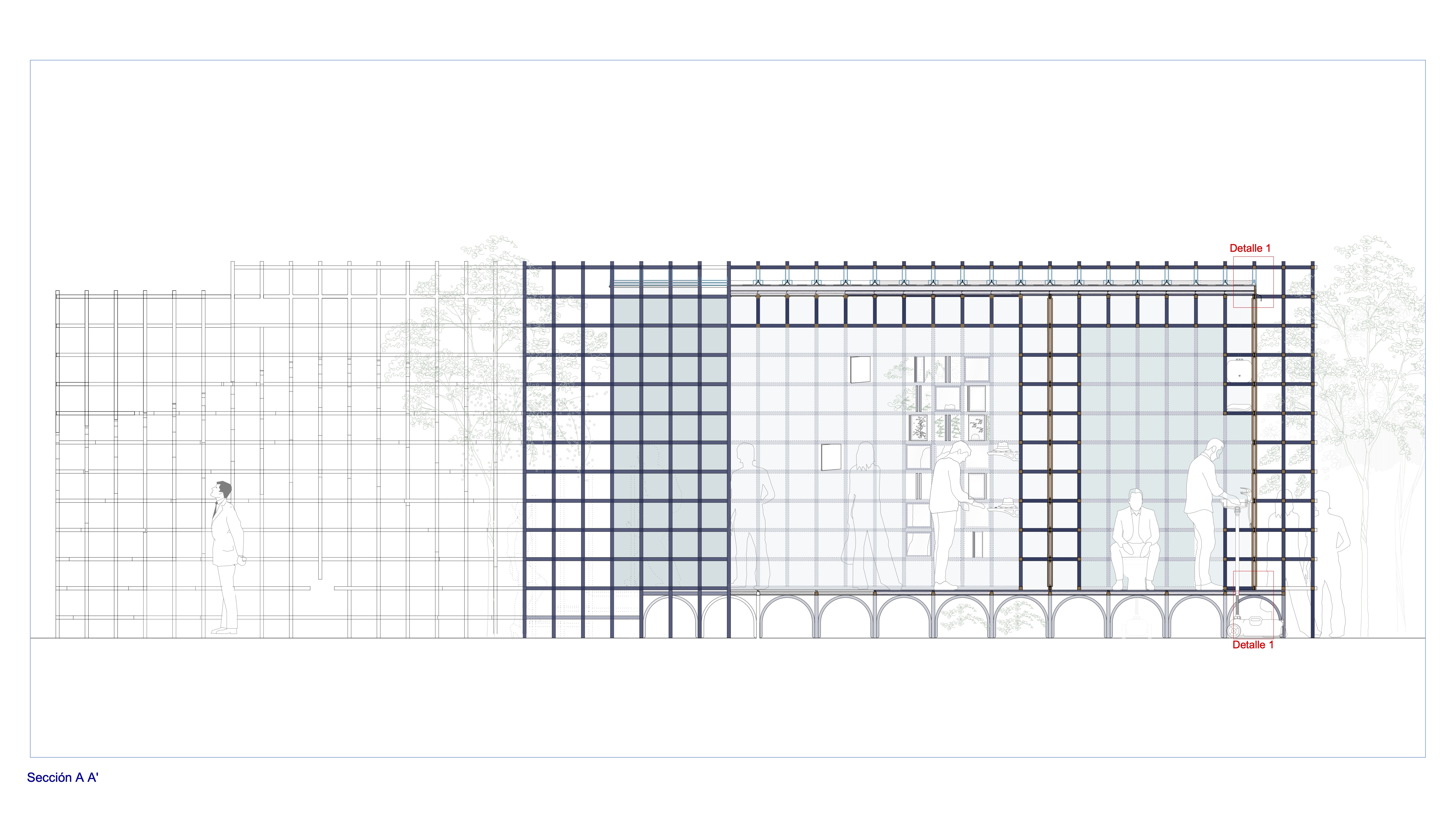

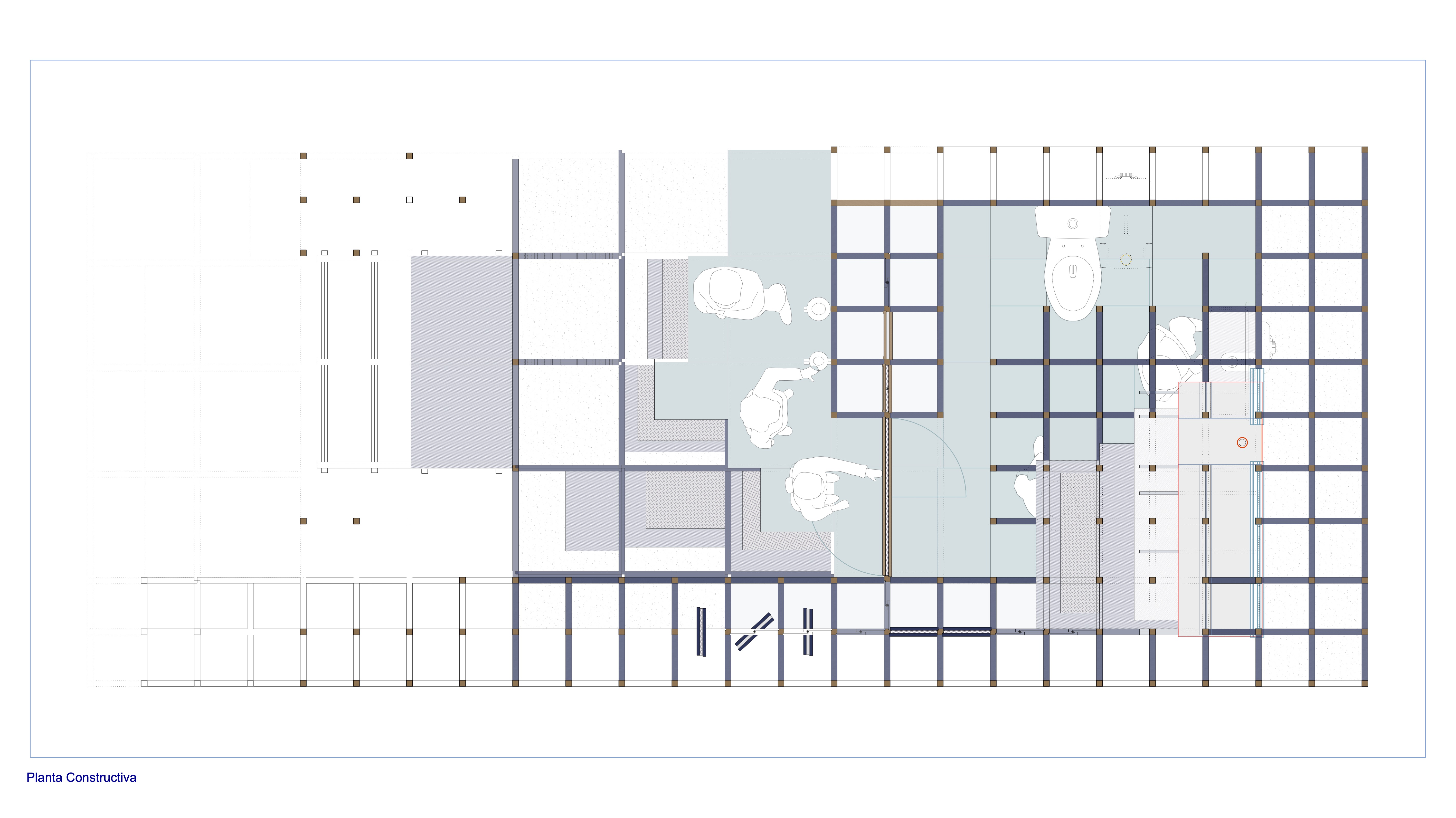

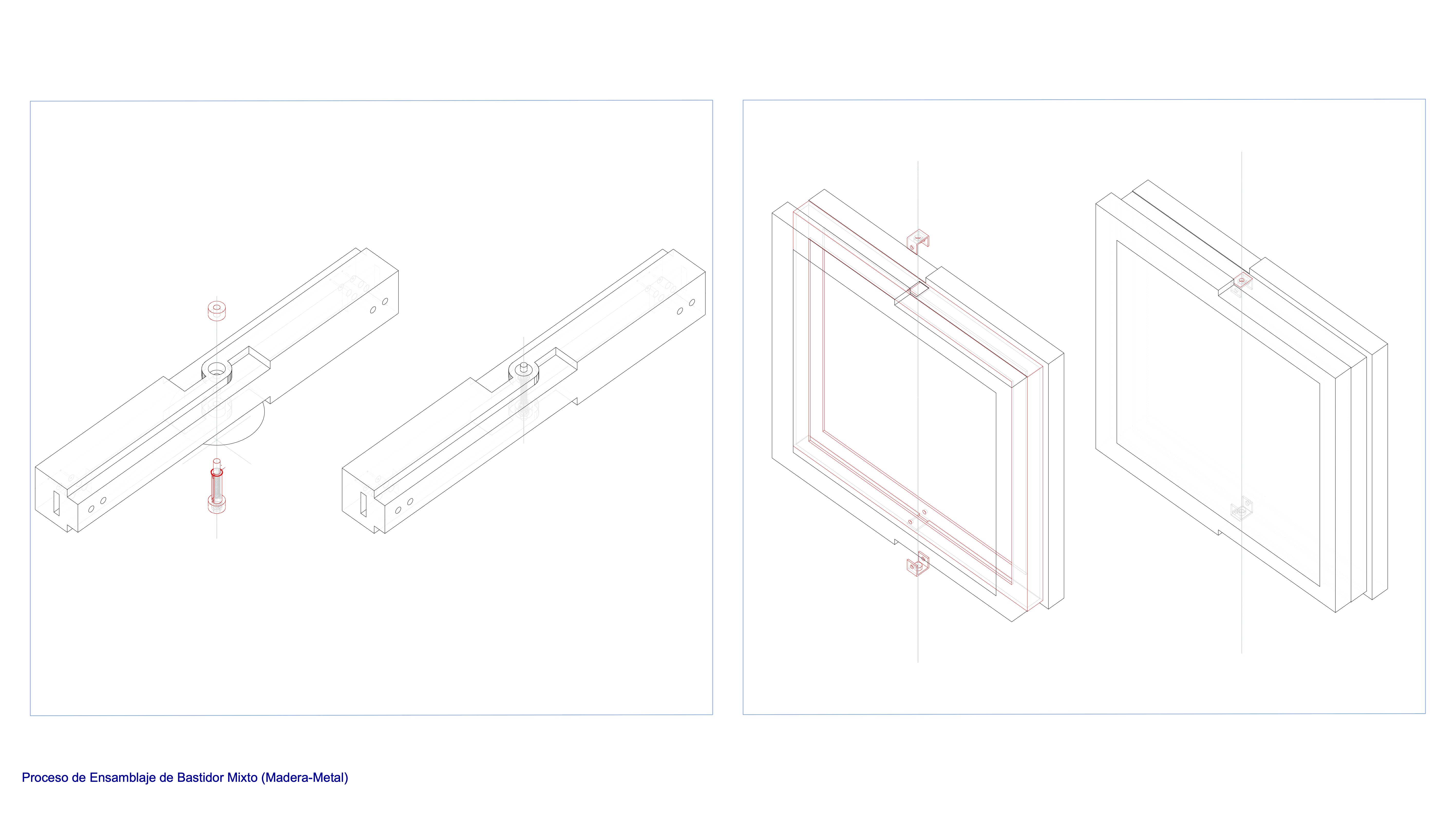

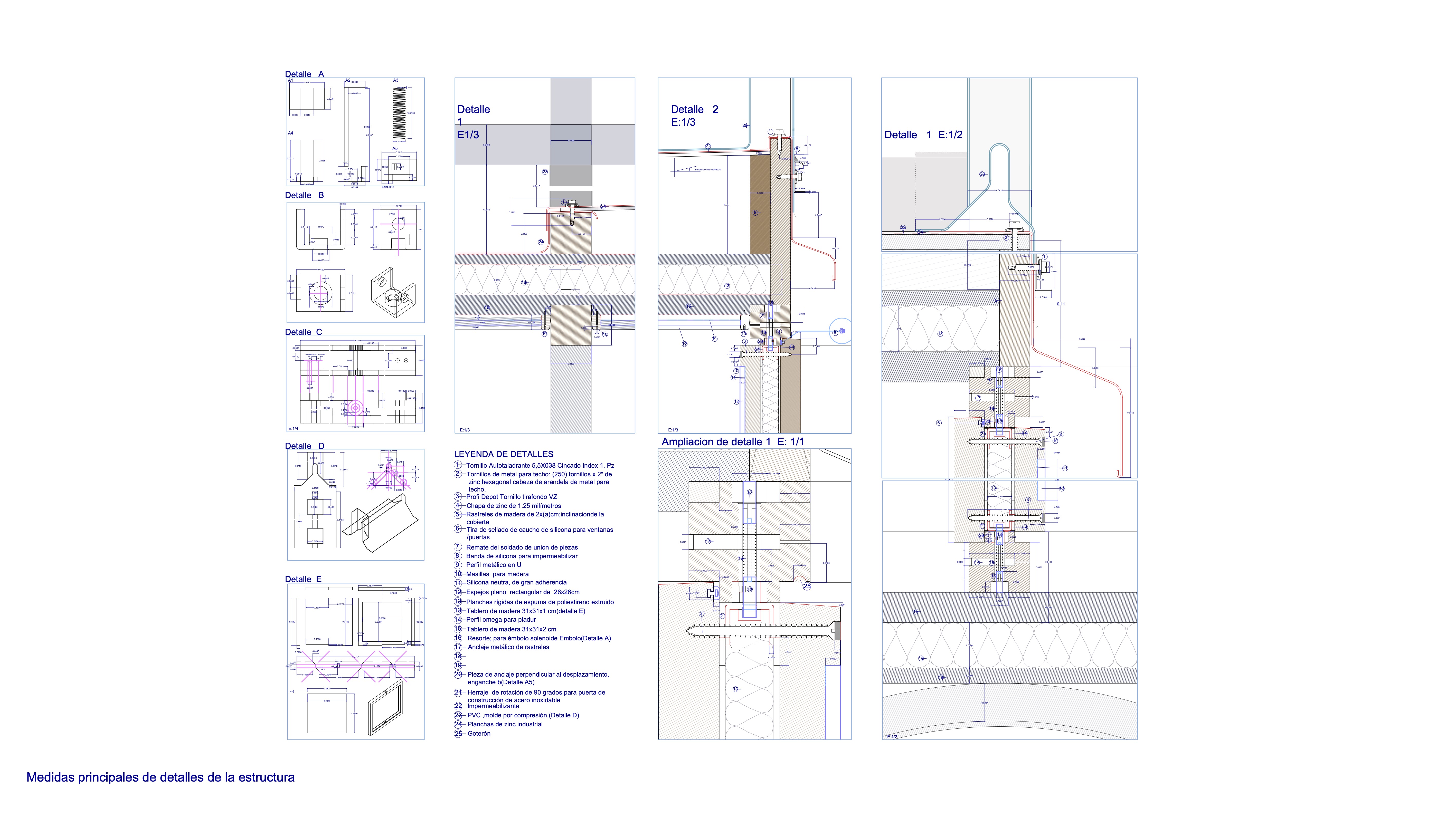

Axonometric facade detail of operable timber window with mirror panel on blue background showing rotation and fixingsVertical section of the pavilion showing services area, hat exhibition space, raised floor entry steps, and fully operable facadeSectional perspective showing pavilion activity and layered roof build-up with timber screens filtering daylightAxonometric of two operable window modules showing half-open and fully open positions and facade connection detailsWindow assembly sequence showing anchoring piece engagement to timber frame enabling controlled movementExploded mechanism diagram of metal anchoring hook with internal spring showing four-step assembly and rotation functionConstruction details sheet showing roof, facade, and material legend for timber and metal cladding system
